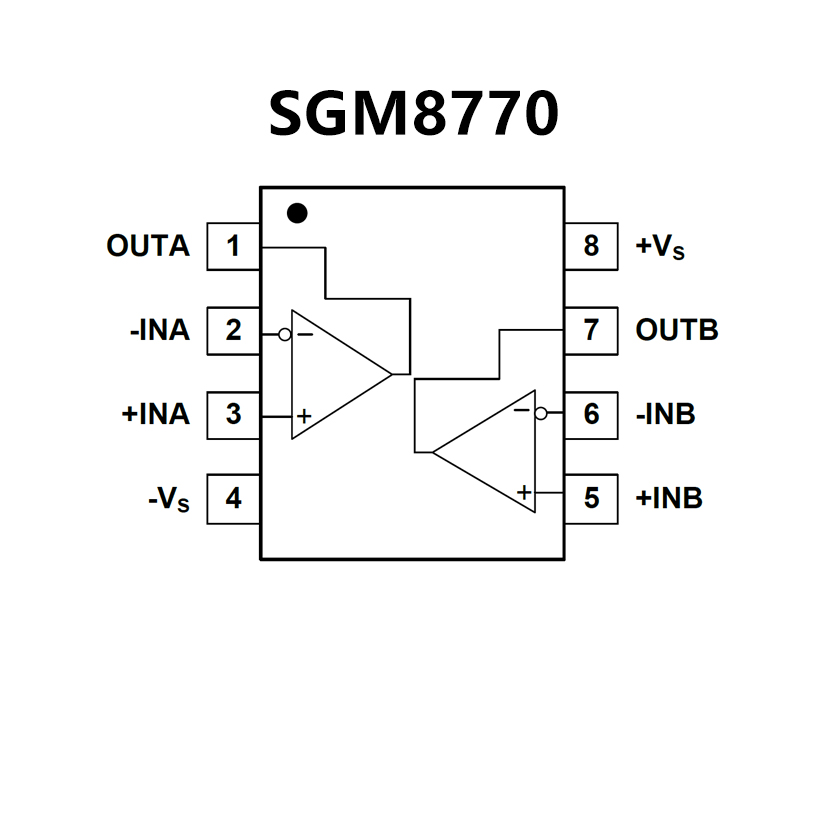

SGM8770XS8G.pdf? Single Supply or Dual Supplies
? Wide Supply Voltage Range: 2.8V to 36V
? Open-Drain Output
? Low Supply Current Independent of Supply Voltage:
310μA (TYP)
? Low Input Offset Voltage: 2.4mV (MAX)
? Low Input Bias Current: ±20pA (TYP)
? Input Common Mode Voltage Range Includes
Ground
? Differential Input Voltage Range Equal to
Maximum-Rated Supply Voltage: ±36V
? Low Output Saturation Voltage
? Output Compatible with TTL and CMOS
? -40℃ to +125℃ Operating Temperature Range
? Available in Green SOIC-8 and TDFN-3×3-8L
Packages

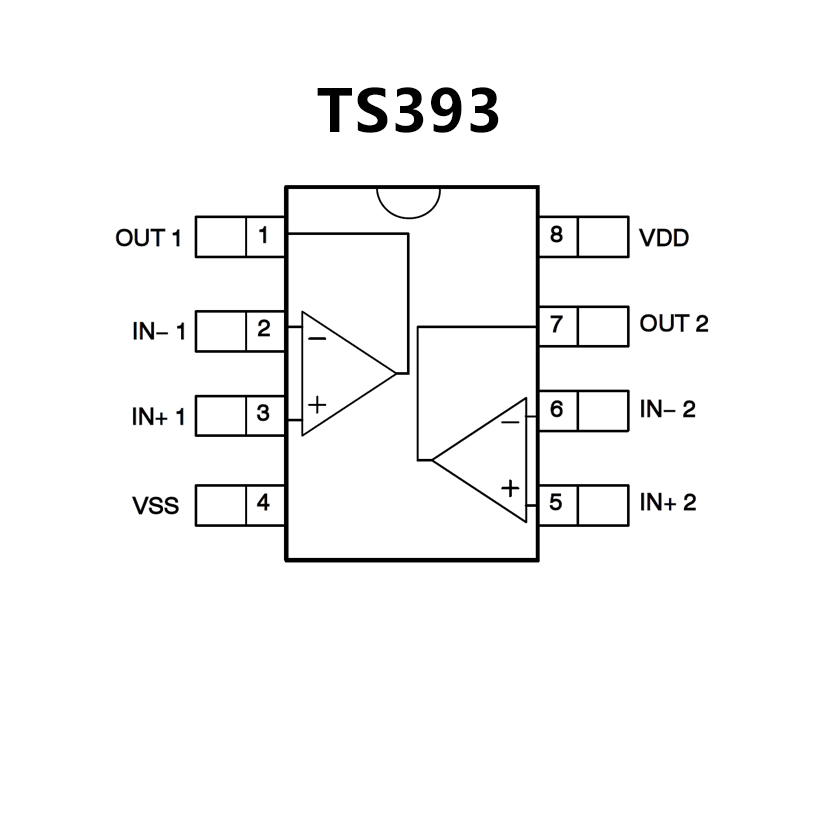

? Extremely Low Supply Current: 6 ?A Typical Per Channel
? Wide Supply Range: 2.7 to 16 V
? Extremely Low Input Bias Current: 1 pA Typical
? Extremely Low Input Offset Current: 1 pA Typical
? Input Common Mode Range Includes VSS
? High Input Impedance: 1012 Ω
? Pin?to?Pin Compatibility with Dual Bipolar LM393
? NCV Prefix for Automotive and Other Applications Requiring
Unique Site and Control Change Requirements; AEC?Q100
Qualified and PPAP Capable
? These Devices are Pb?Free, Halogen
Free/BFR Free and are RoHS Compliant
